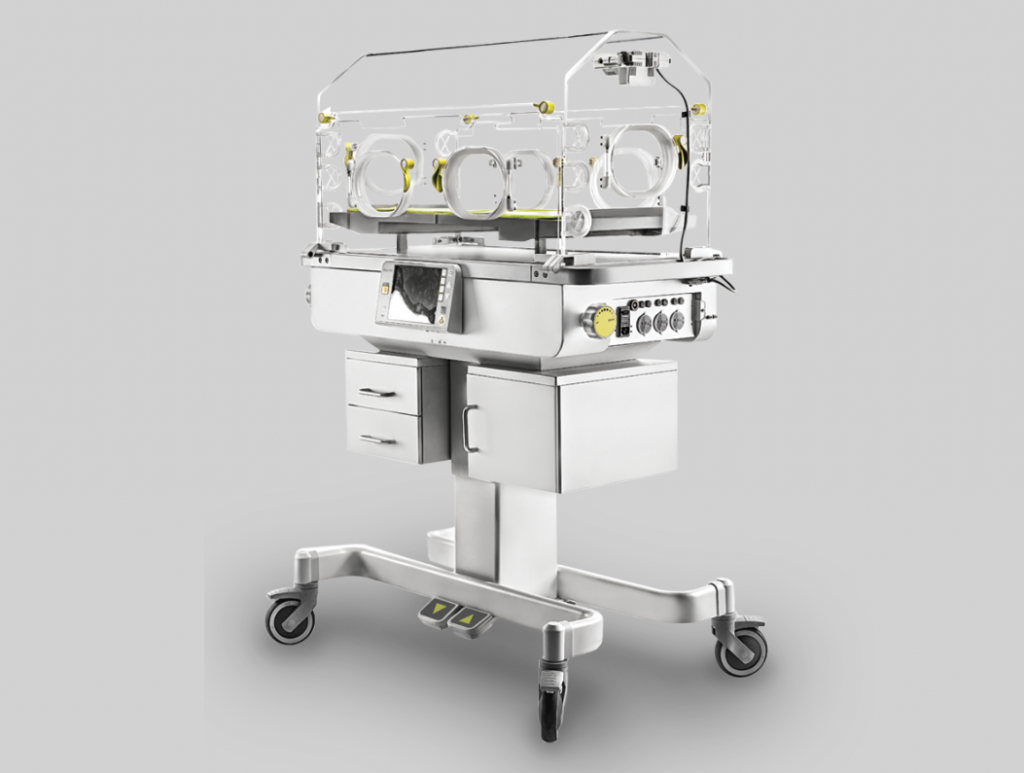

Incubator INC-3000

Description

Features
• Soundproof hood provides new born a super quite environment by reducing the noise level to 45dB.
• User-friendly design provides medical personnel a pleasuresome experience to operate it.
• Big storage drawers
• Ergonomic designed handle with perfect height
• Detachable water reservoir, easy to clean and sterilize
• Three auxiliary power output
• Tente castor with lock
Specifications
Physical Attributes
• Height: 126.1 cm to 146.1 cm
• Width: 99.7 cm
• Depth: 57.7 cm
• Weight: 80 kg
Hood Specifications
• Tubing access ports: 10
• Access door size: 18×13 cm
• Mattress to hood height: 4.8 cm
• Soft bed mattress size:
• Mattress tilt: ±12°
• Drawer depth: 36 cm
• Drawer size: & (×2)
Temperature Control Modes
Air mode
• Temperature range: 20° C – 37° C
• Override temperature range: 37° C – 39° C
• Accuracy: ≤ ±1.0° C
Skin mode
• Temperature range: 34° C – 37° C
• Override temperature range: 37° C – 38° C
• Accuracy: ±0.3° C
• Dual-skin temperature monitoring: Yes
Servo Humidity Option
• Humidity control range: 30%-95%RH
• Humidity control operating time without refilling: 24 hours
• Humidity control reservoir capacity: 1500 ml
• Humidity display accuracy: ±5%RH
• Humidity control accuracy: ±5%RH
Servo Oxygen Option
• Air flow velocity across mattress: <10 cm/sec
• Temperature rise time at 22° C (72° F) ambient: <20 min (From 22° C, 50% RH, to 35° C)
• Temperature variability: <0.2° C
• Temperature overshoot: <0.5° C maximum
• Temperature uniformity with a level matress: <0.8° C
• Operating noise level in hood: ≤45 dBa
• Carbon Dioxide (CO2) Level: <0.5%
Scale Option
• Weight range: 300 g to 8 kg
• Weight display resolution: 1 g
• Weight accuracy: ±10 g
Operating Environment
• Temperature: 20° to 30° C
• Humidity: 10 to 95% RH
• Air Velocity: Up to 0.3 m/sec
Storage/Shipping Information
• Temperature: -25° to 60° C
• Humidity: 0 to 95% RH
Alarm List
A. System Fault Alarm
• Stuck Key: This alarm occurs when a stuck key is detected.
• Sensor Disconnect: This alarm occurs when communication with the sensor module fails.
• Sensor Module Failure3: This alarm occurs when the controller detects a sensor module fan is not rotating.
• Sensor Module Failure6: This alarm occurs when the controller detects the ambient temperature sensor is open or shorted.
• Sensor Module Failure8: This alarm occurs when the controller detects that the sensor module watchdog reset.
• Low air flow: This alarm occurs when an air circulation failure is detected.
• Air Flow Probe Failed: This alarm occurs if the air flow probe connection is open or short circuited.
• Motor Failed: This alarm is activated when the fan motor speed falls outside specified tolerances.
• Power Failure: This alarm occurs when the AC power supply is off. (within 30s)
• Battery Disconnect: This Alarm occurs when battery is disconnected.
• Sensor Out of Position: This alarm occurs when the sensor module is not in the hood.
• Access Panel Open: This alarm occurs when access panel is open.
• Heater Failed: This alarm occurs when the heater is over temperature.
• Heater Failed2: This alarm occurs when the heater is damaged.
• Air Probe Failed: This alarm occurs when one of the two thermistors in the sensor module differ from the other by 0.8°C or both two thermistors have a measurement error exceeding acceptable limits.
• Skin1 Probe Fail Alarm: This alarm occurs in the Skin mode if the Skin1 probe is electrically open or shorted.
• Watchdog Failed: This alarm occurs when a failure is detected with the watchdog.
B. Temperature Alarm
• High Skin Temperature: This alarm occurs when the indicated displayed temperature differs from the set temperature by <0.5°C or <1,0°C (user selectable, default 1.0°C).
• Low Skin Temperature: This alarm occurs when the indicated displayed temperature differs from the set temperature by < 0.5°C or >1.0°C (user selectable, default 1.0°C).
• Remove Skin2 Probe: This alarm occurs when two skin probes are installed and the Skin mode is selected.
• Skin Probe Disconnect: This alarm is activated when the Skin1 temperature probe (only in the Skin mode) is removed from the sensor module. The associated monitoring display is blanked. (within 30s)
• High Temp CutOut: Under air control, this alarm is activated if the displayed incubator temperature reaches 38°C for set temperatures >37°C, or 40°C for set temperatures <37°C. Under skin control, this alarm is activated if the incubator temperature reaches 40°C for any set temperature.
• High Air Temperature: This alarm occurs when the indicated displayed temperature differs from the set temperature by <1.5° C.
• Low Air Temperature: This alarm occurs when the indicated displayed temperature differs from the set temperature by >2.5°C.
• High Skin1 Temperature: This alarm occurs when the Air mode is enabled and the infant skin temperature (from the Skin1 probe) is <38.0°C when the Override mode is not active, or <39.0°C when the <37°C made of operation is active.
• High Skin2 Temperature: This alarm occurs when the Air mode is enabled and the infant skin temperature (from the Skin2 probe) is <38.0°C when the Override mode is not active, or <39.0°C when the <37°C made of operation is active.
C. Humidity Alarm
• Humidity Heater Failed1: This alarm occurs when the humidity heater temperature is over heat.
• Add Water: No enough water in water reservoir.
• Low Humidity: This alarm occurs when the humidity is 10% lower than setting humidity. Note: The alarm is blocked for 30 minutes everytime turn on the machine, or 15 minutes everytime the humidity setting value is changed.
• Reservoir Out of Position: This alarm occurs when the water reservoir not in position.
• Humidity Heater Failed2: This alarm occurs when the heater thermocouple wires are open or shorted.
D. Oxygen Alarm
• Oxygen Cell: This alarm occurs when the oxygen cell readings differ by more than 3%. As a result, the oxygen flow into the system is interrupted.
• Difference: This alarm occurs when the displayed oxygen value is <3% below the oxygen set point.
• Low Oxygen: Low Oxygen value is <3% above the oxygen set point
• High Oxygen: This alarm occurs when the displayed oxygen cells are out of date.
• Change Oxygen Cells: This Alarm occurs when the 02 source pressure is low or high.
• Check 02 Supply: This alarm occurs when proportional value is failed.
• Servo 02 System Fail: This Alarm occurs when the oxygen cell is disconnected with module box.
